myCobot Pro Vacuum Suction Cups & Air Compressor For myCobot 320, myCobot Pro 630
myCobot Pro Vacuum Suction Cups & Air Compressor For myCobot 320, myCobot Pro 630
Available in stock (97)
This is an On Demand item and is not regularly stocked in our warehouse. Once your order is placed, we will procure the product from the supplier as part of our upcoming purchase schedule.
Please note that delivery timelines depend on the supplier’s order frequency.
If you have any questions, feel free to contact us .
Product Description

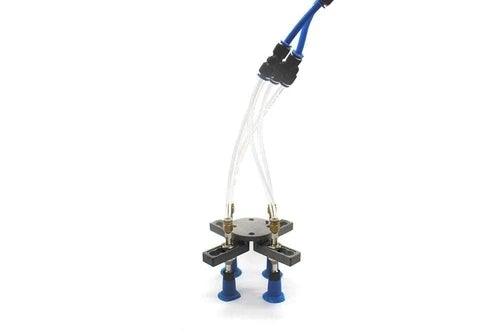

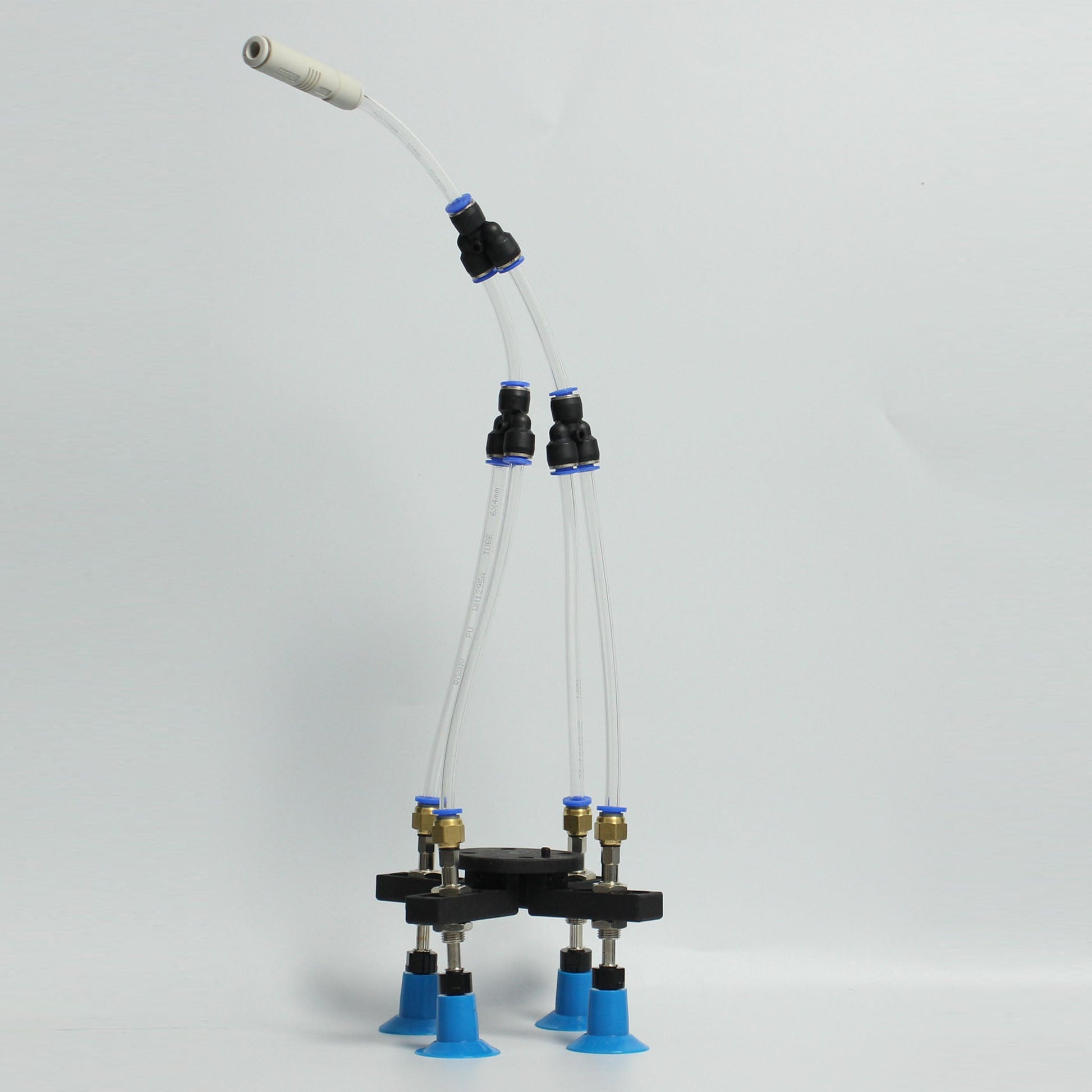

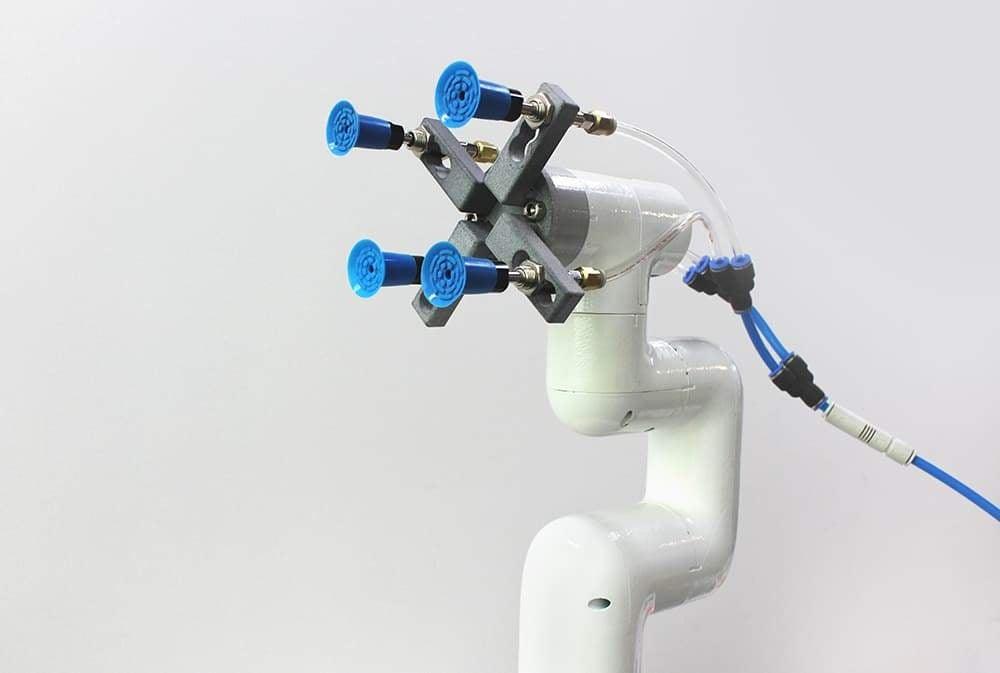

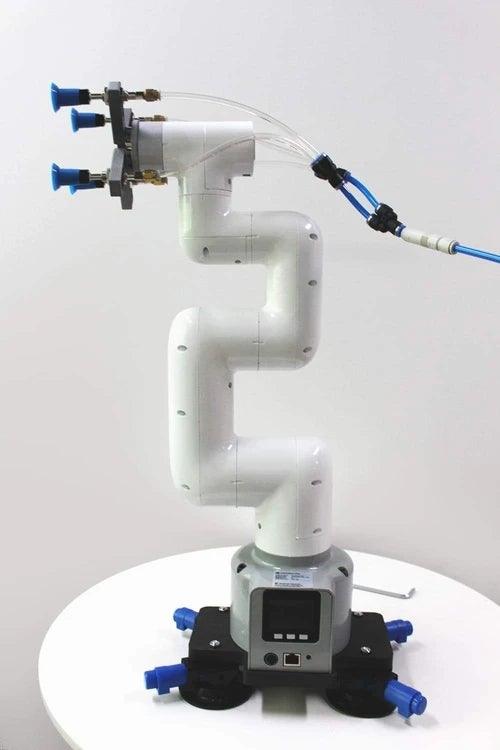

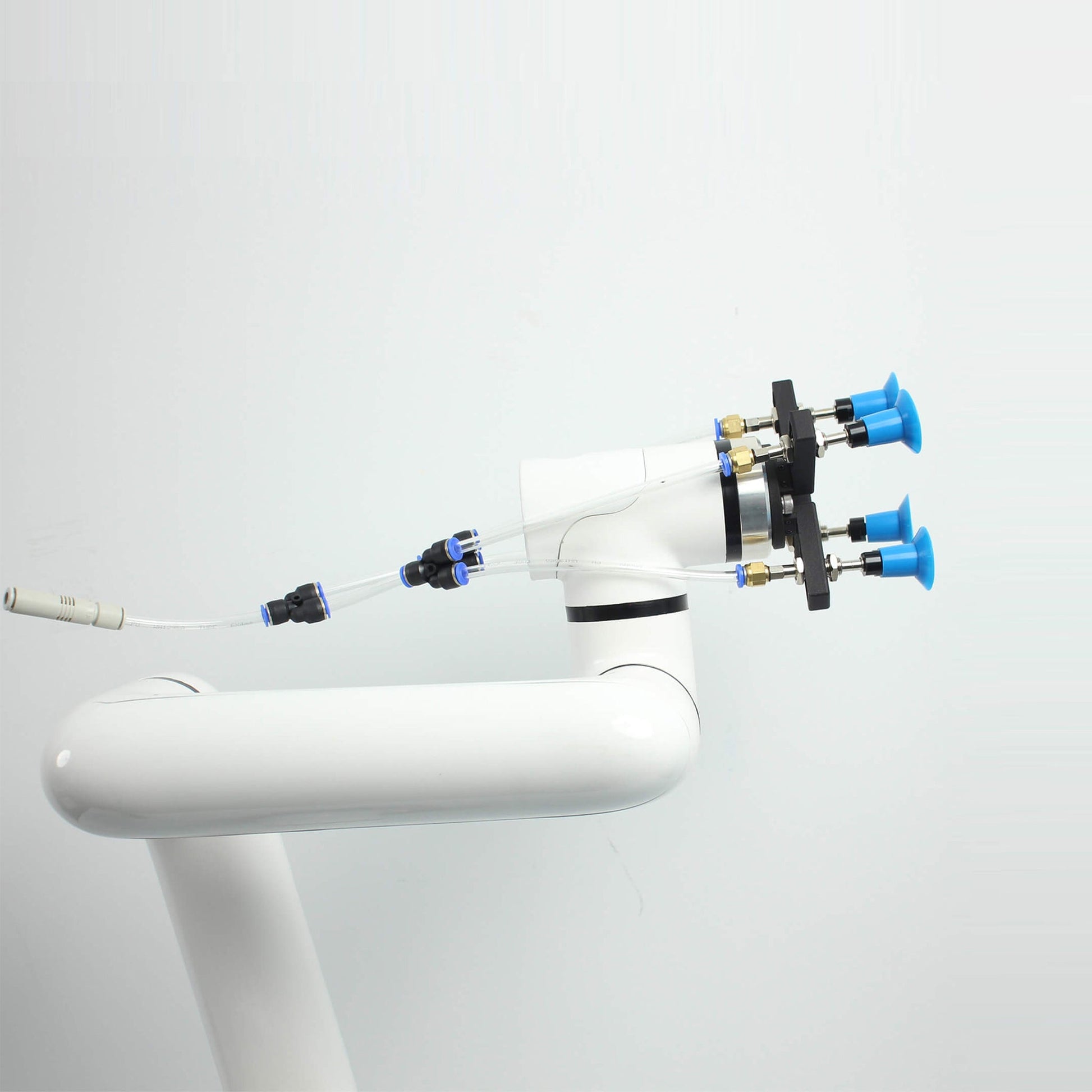

myCobot Pro vacuum suction cups are very efficient for fast and reliable pick and place and allow you to pick some objects that a normal gripper can’t pick. Such as taking out the cover of a flat box, moving soda cans from the top, picking and placing large objects with a flat surface.(Fit for ER myCobot 320 M5Stack 2022、 ER myCobot 320 PI 2022、ER myCobot Pro 630 )
Features
Easy to Use
Strong Suction
Full Control and Versatile
Small Size and Saving Installation Space
Simple and Robust Robotic Vacuum Suction
Components

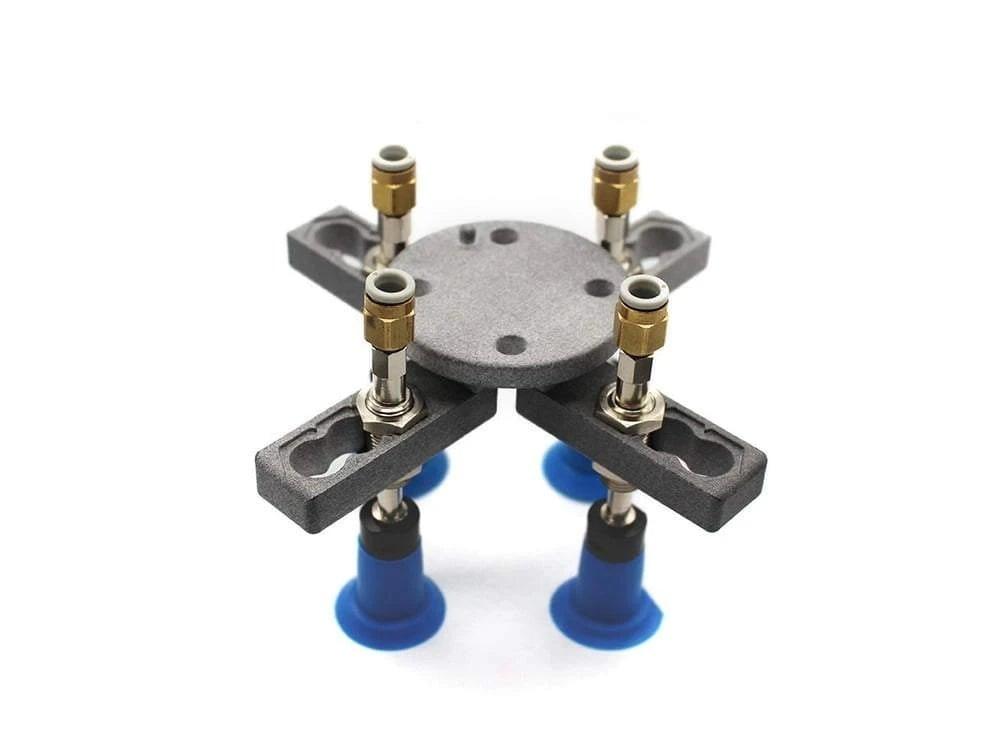

- Center Flange x1
- Spring links x4
- L Holder x4
- Cups x4
- Air Tubes Set x1 (1m Long)
- Electromagnetic valve and connectors x1

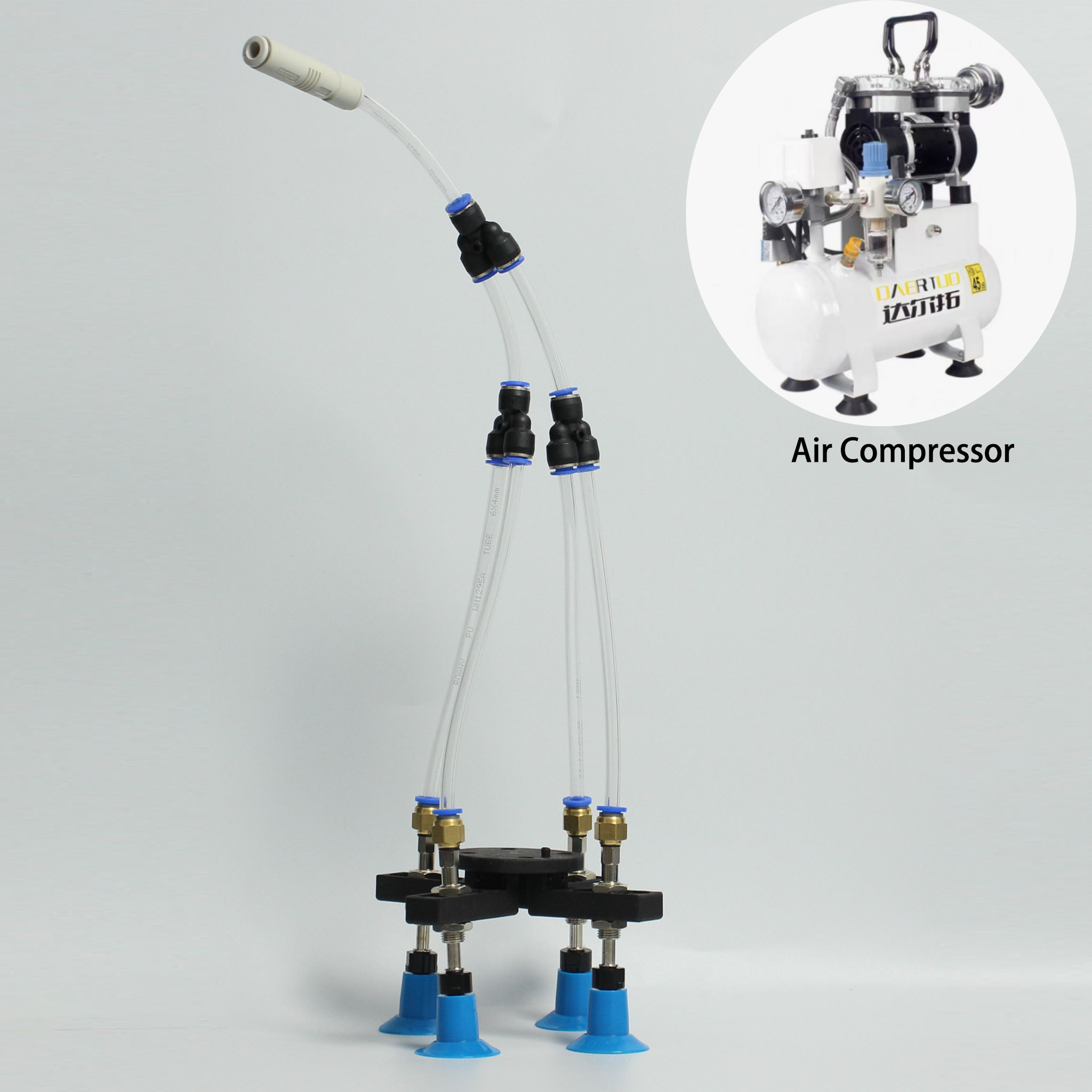

- Air Compressor x1 （The working voltage of the air pump is 220V/50HZ. Please identify the use environment after purchase.）
Specifications
| Specification | Parameter |
|---|---|
| Power rating | 370W |
| Pressure | 0.8mpa |
| Rotate speed | 1400R/Min |
| Voltage | 220V/50Hz |
| Air displacement | 49L/Min |
| Maximum adsorptible weight | 1kg |
| Available suction numbers | 1/2/4 |
| Weight of air pump | 10kg |
| Weight of suction | >300g |
