Bed Surface: Made of high-quality cold-rolled carbon steel plate with one-time stamping forming. Maximum load capacity: 300kg. Reasonable structure, sturdy and durable.
-
Bed Frame: Adopts high-quality 40*80*1.2mm carbon steel rectangular tube. The auxiliary hydraulic gas springs on both sides of the bed frame are thickened and pressurized, with a personally tested load-bearing capacity of 150kg.
-
Bed Feet: Detachable type, welded with 40*40*1.2mm high-quality carbon steel rectangular tube. Load-bearing capacity: 120kg per piece. Convenient and reliable braking, flexible and lightweight.
-

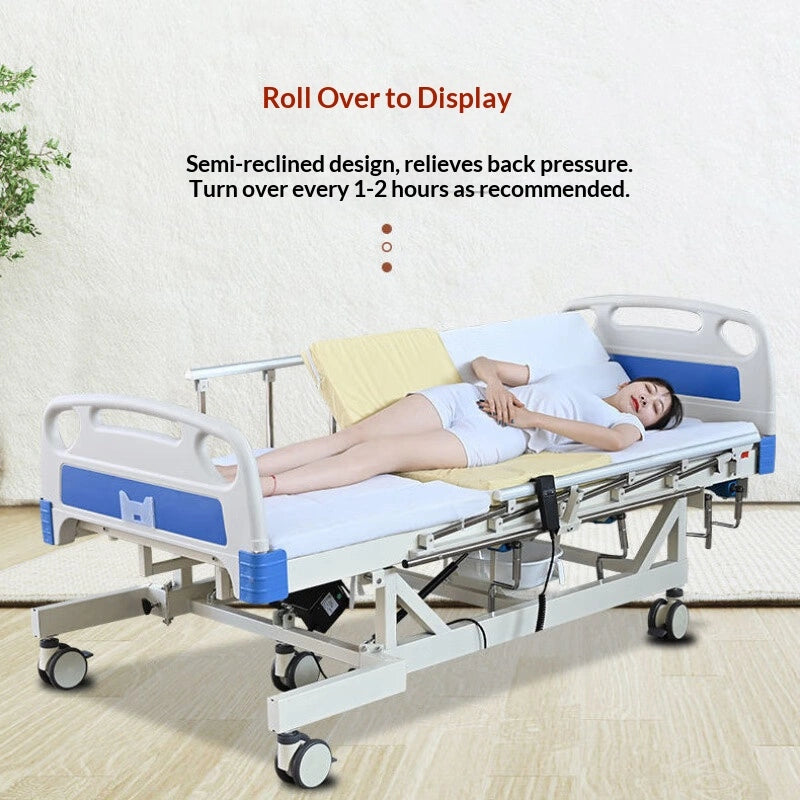

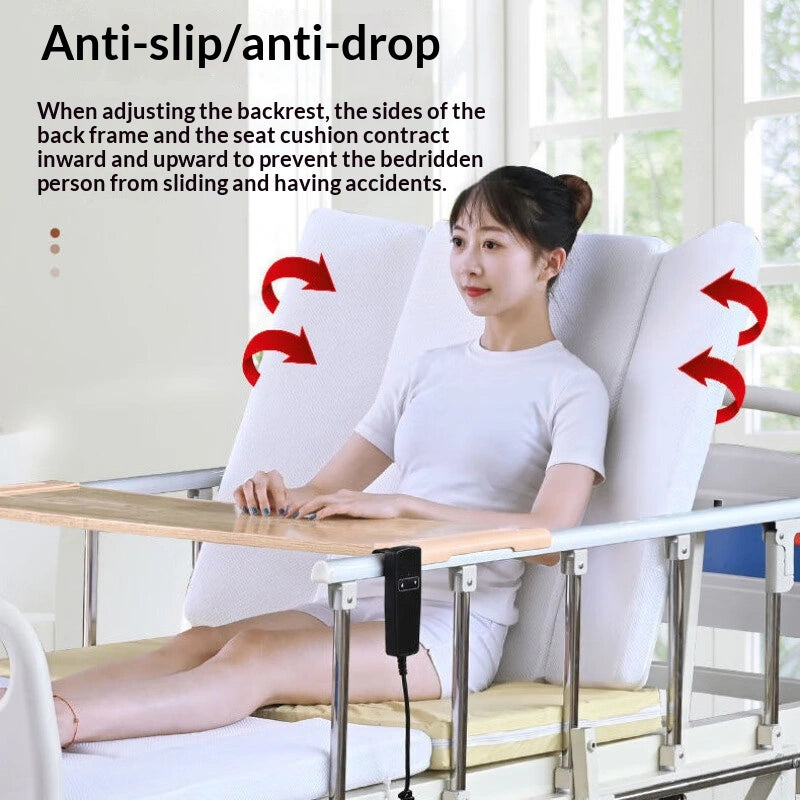

Adjustment Angles: Backrest Lifting Angle: 0-85°; Leg Bending Angle: -55-30°; Standing Angle: 0-87°; Turning-over Angle: 0-70°.
-
Headboard & Footboard: Made of ABS material, enabling tool-free disassembly and assembly. Elegant appearance with bright color matching. Equipped with a transparent PC material bed label at the footboard. Adopts medical silent wheels for easy movement.
-
Guardrails: 4 pieces of PP foldable guardrails, convenient and reliable to store, durable in use.
-
Crank Handle: Made of electroplated 45# steel, foldable for storage, convenient and aesthetic. The lead screw is equipped with a bidirectional interference protection device, and the motor support part has a thickness of 40*40*2.2mm, ensuring safety and reliability.
-

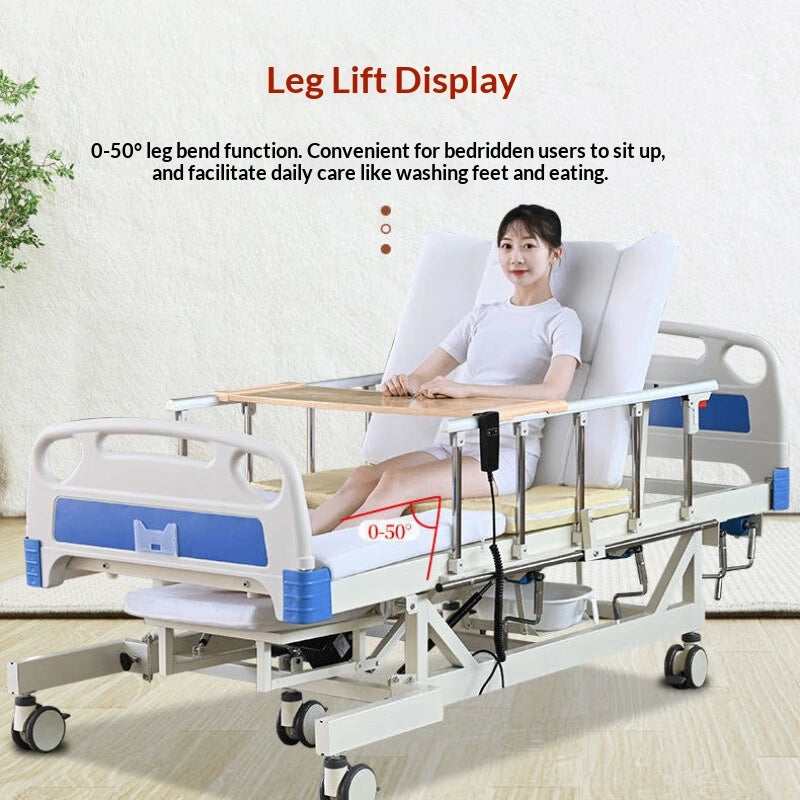

Functionality: Supports back lifting and leg raising functions. Backrest folding angle: 0~85°. The headboard and footboard are made of ABS material, durable and elegant.
-
Frame Welding & Coating: The overall frame adopts CO2 shielded welding technology. After grinding, it undergoes pickling, secondary phosphating, and electrostatic spraying, followed by constant temperature baking. The surface coating is bright and firm.
-
Mattress: High-density 6cm latex foam mattress.
Configuration: Silent wheels, arm support bracket, foot pedal, armrest panel, controller, battery, and motor.
