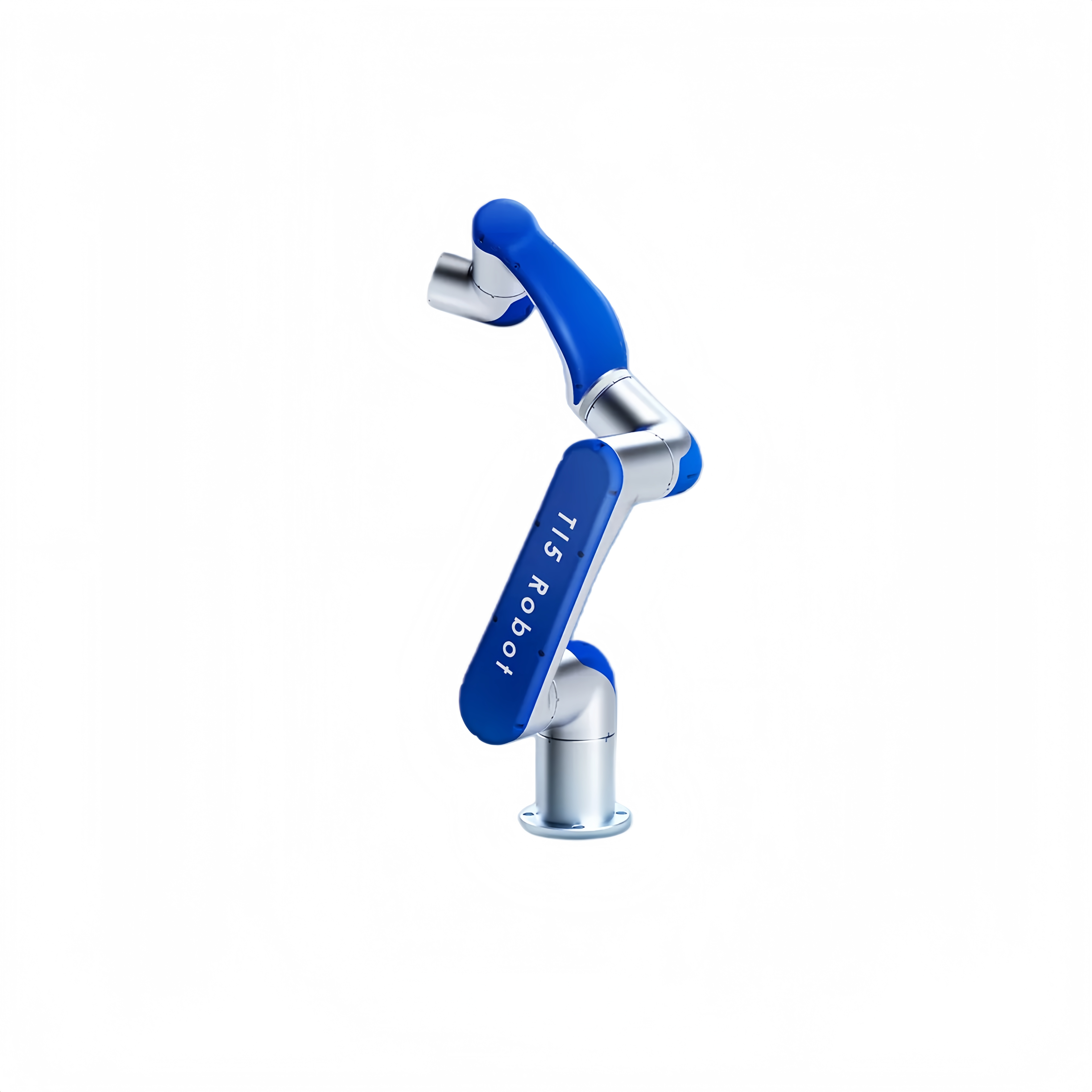

Ti5Robot Collaborative Robotic Arm Eblm-1
Ti5Robot Collaborative Robotic Arm Eblm-1
Hurry up, only 10 items left in stock.
This is an On Demand item and is not regularly stocked in our warehouse. Once your order is placed, we will procure the product from the supplier as part of our upcoming purchase schedule.
Please note that delivery timelines depend on the supplier’s order frequency.
If you have any questions, feel free to contact us .
Product Description

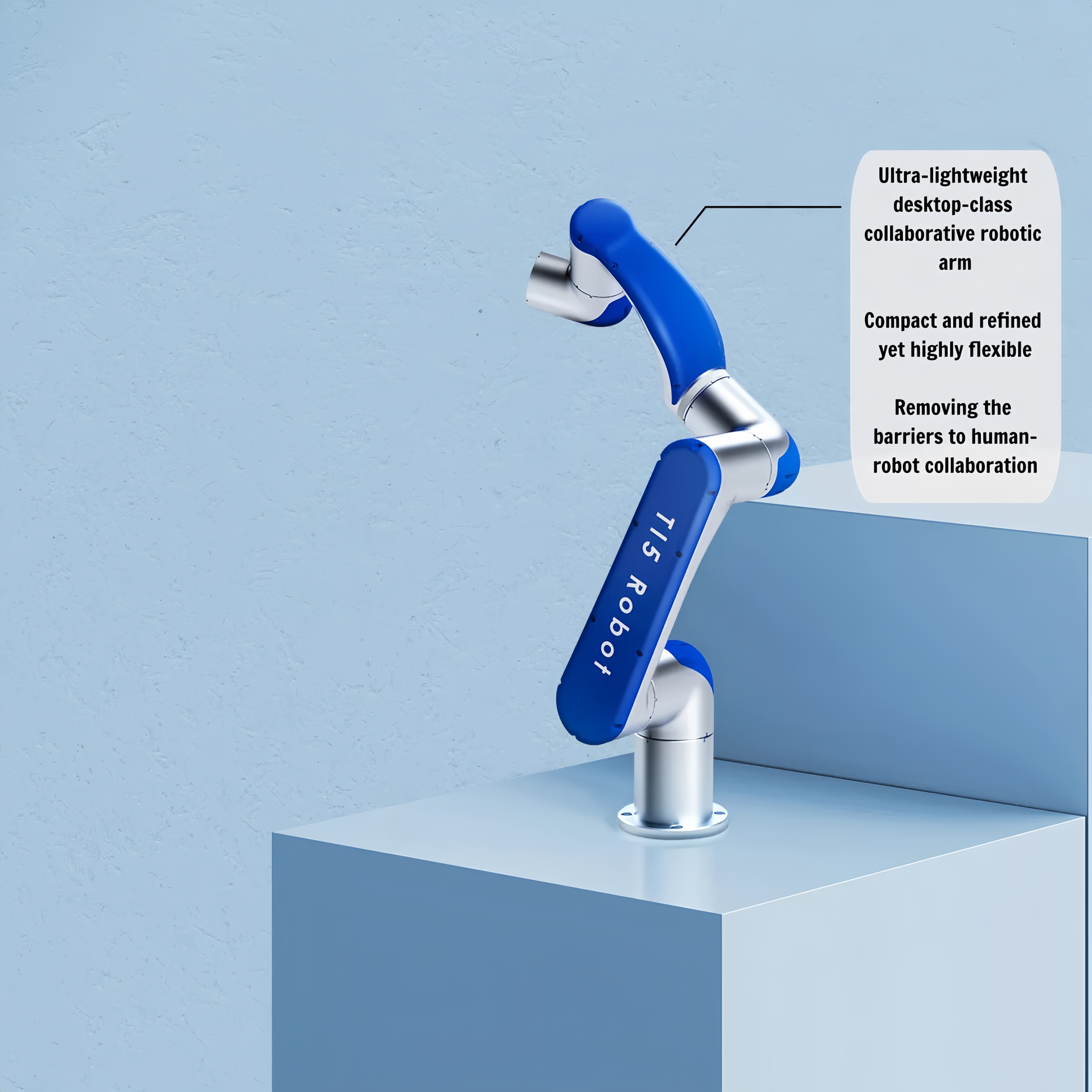

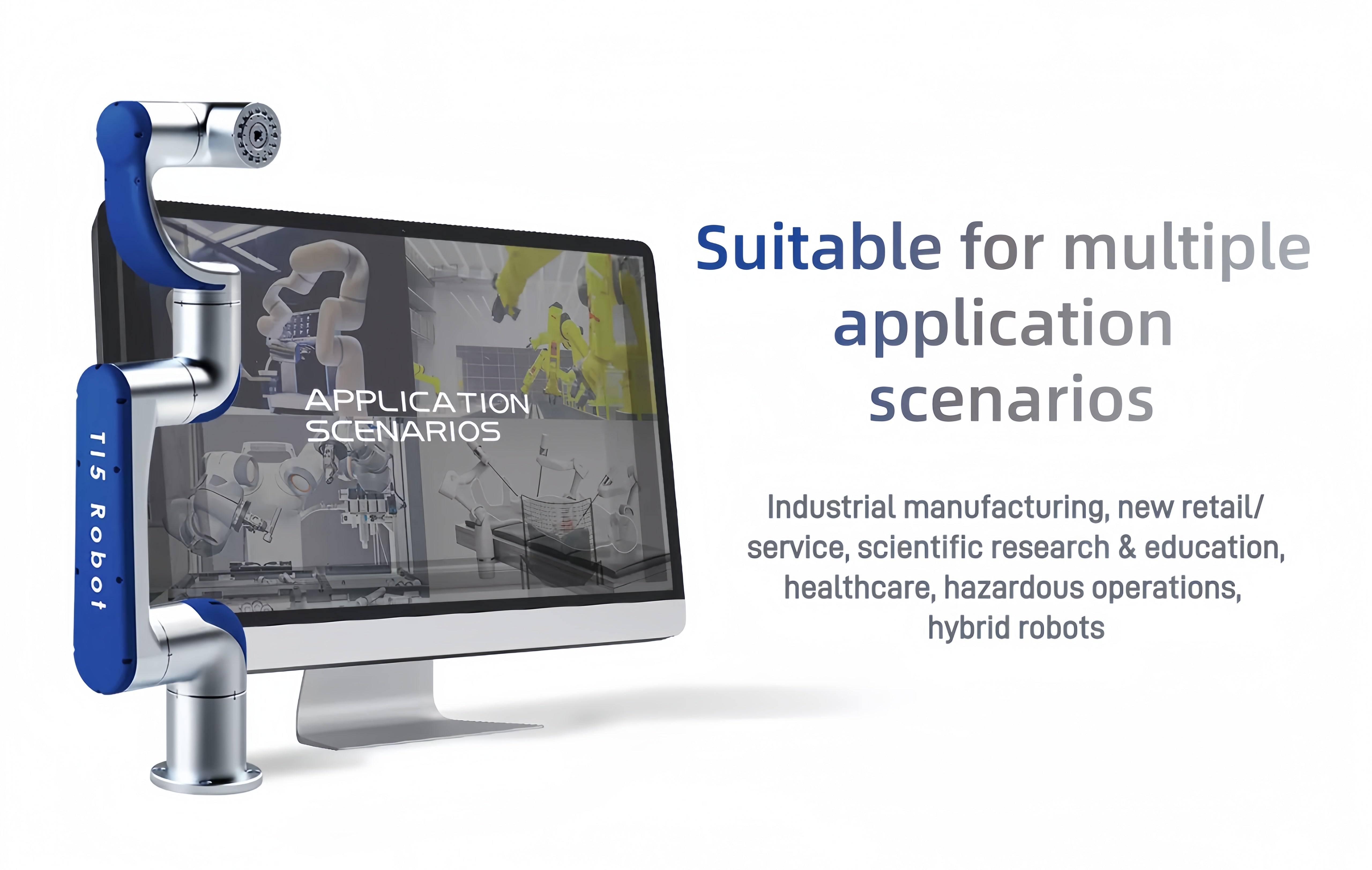

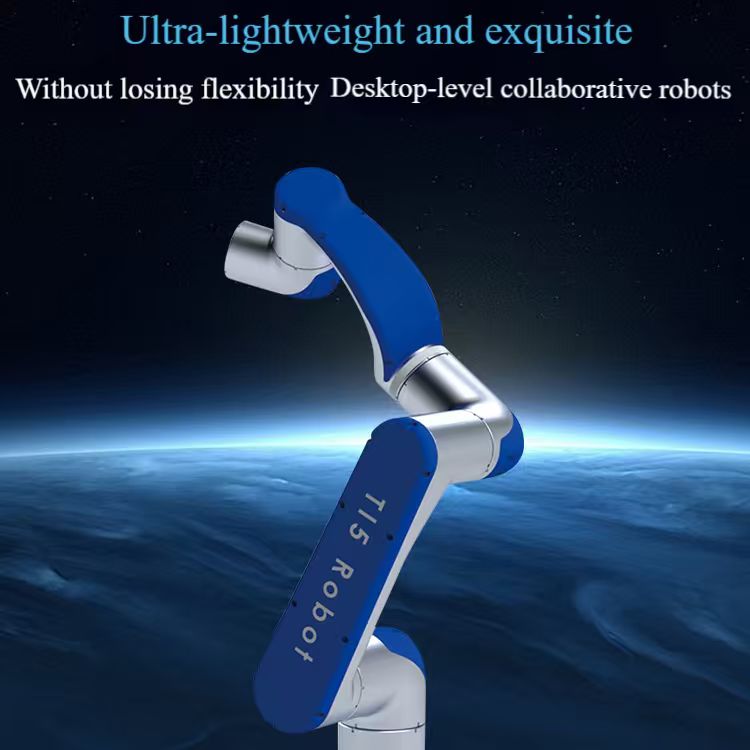

Ti5 Eblm-1 is a high-precision 6-axis collaborative robot with ±0.05mm repeatability. Safe human-robot collaboration, easy programming, and flexible deployment. Ideal for assembly, handling, inspection, and packaging applications. Compact design, IP54 rated.
| Parameter | Specification |
|---|---|
| Name | Ti5 Robot_Eblm-1 |

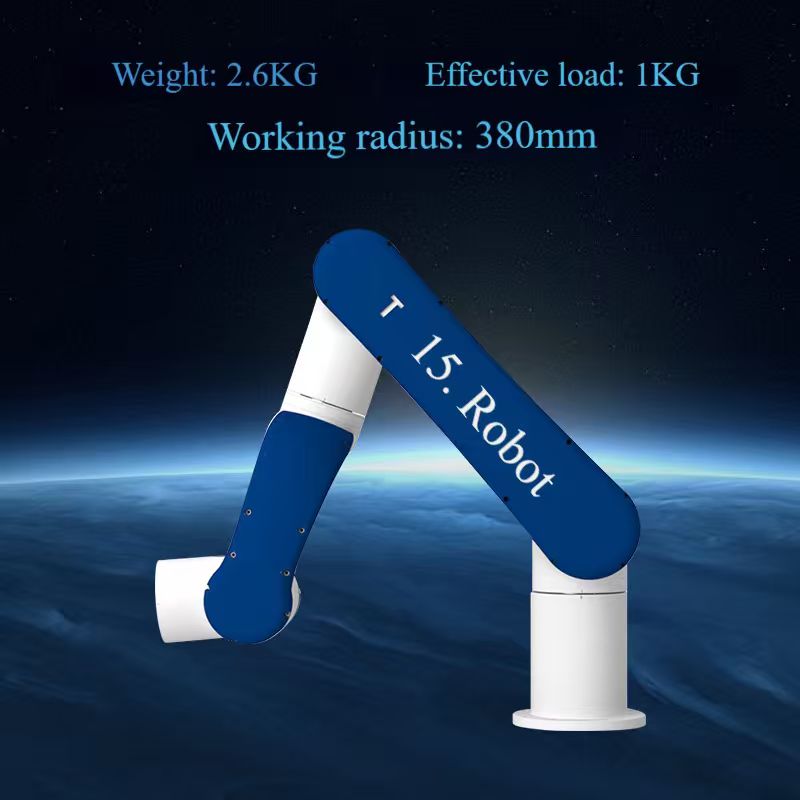

| Mass | 2.6kg |
| Payload | 1kg |
| Working Radius | 380mm |
| Repetitive Positioning Accuracy | 0.05mm |
| DOF | 6 |
| Power | 50W |

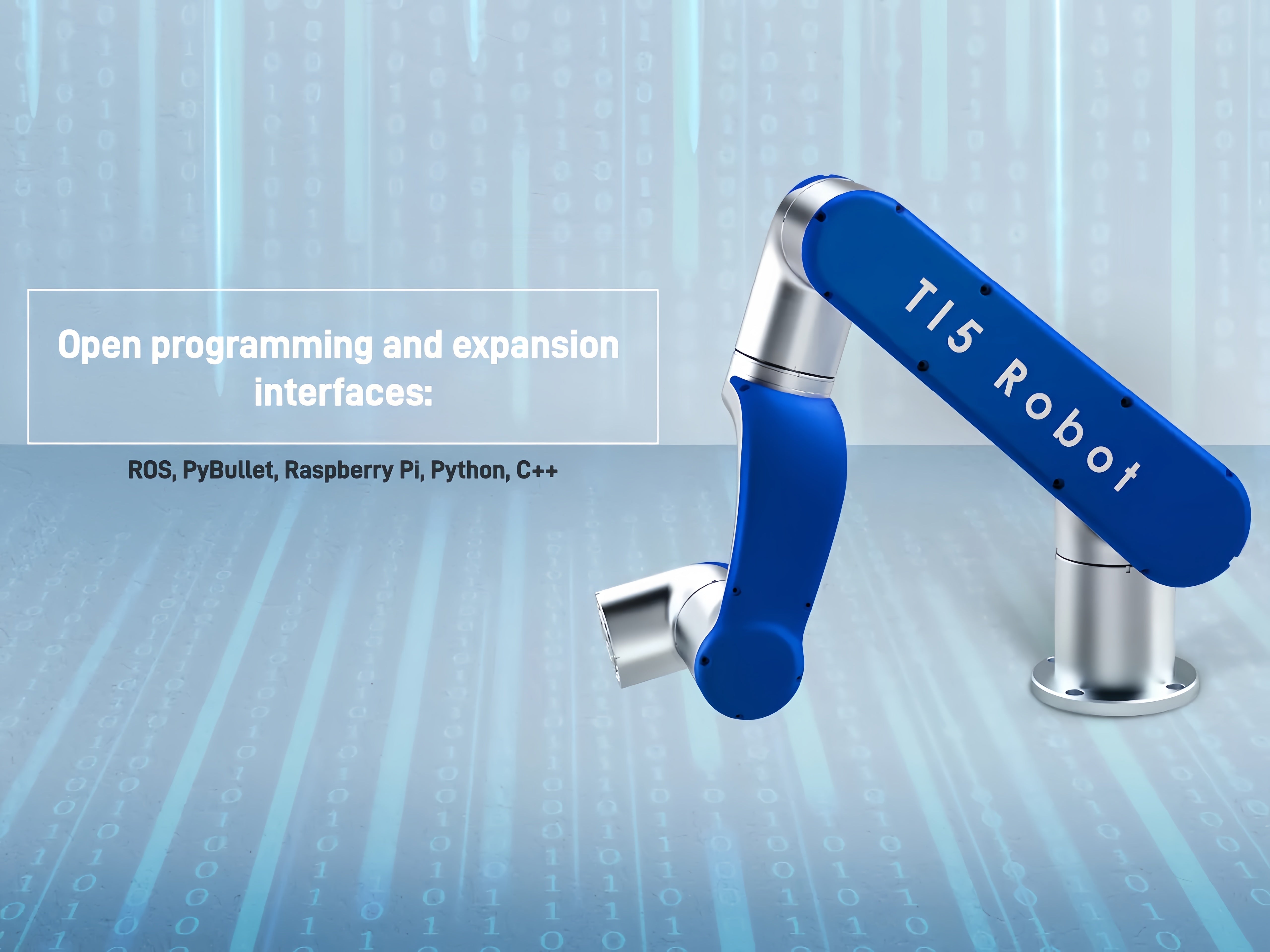

| Interface and Openness | ROS, PYTHON, C++ |
| Power Supply Voltage Range | 28~48V |
| Joint Range | J1(±180°), J2(-265°~-85°), J3(±150°), J4(±180°), J5(±175°), J6(±175°) |

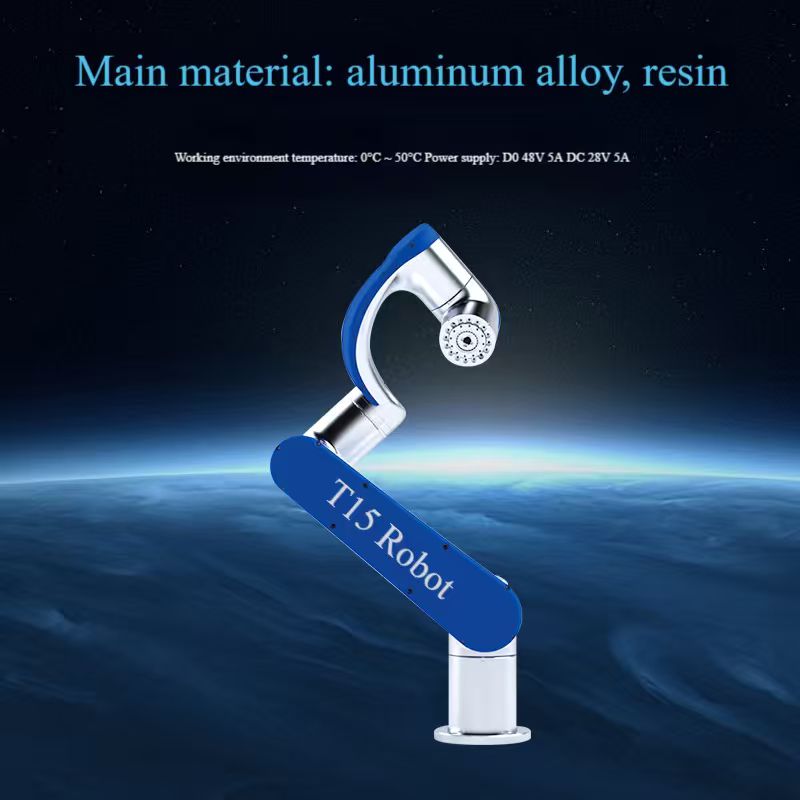

| Material | Aluminum alloy, resin |
| Temperature Range | 0℃~50℃ |
| Power Supply | DC 48V, 5A; DC 28V 5A |
| USB | USB3.0*4 |
| HDMI | HDMI2.0 |
| I/O Interface | SPI/I2C/GPIO/UART |
