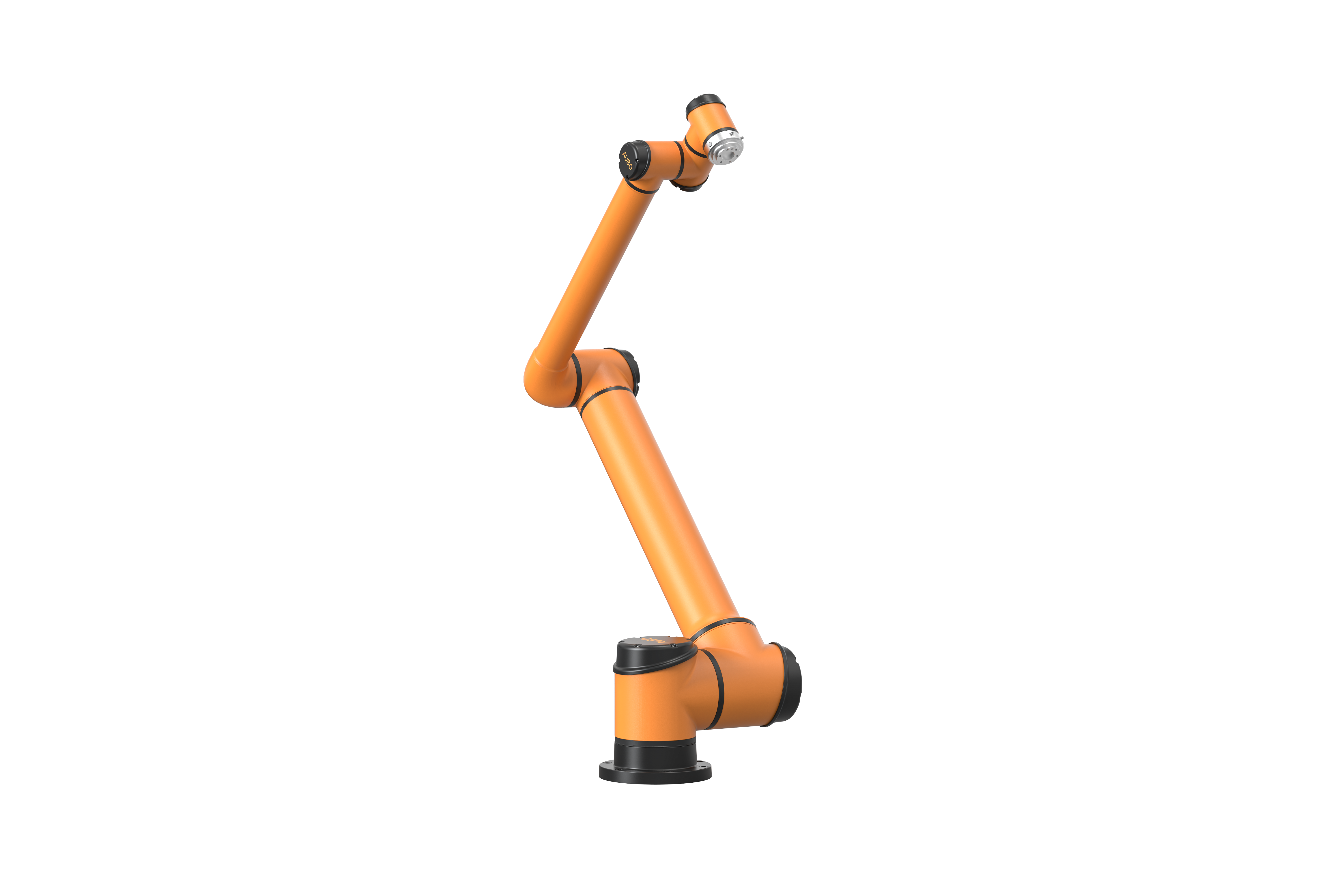

✓AUBO-iS20L high-performance collaborative robot with an extended arm span, featuring fast arm movement to meet the operational demands of complex and sensitive environments.

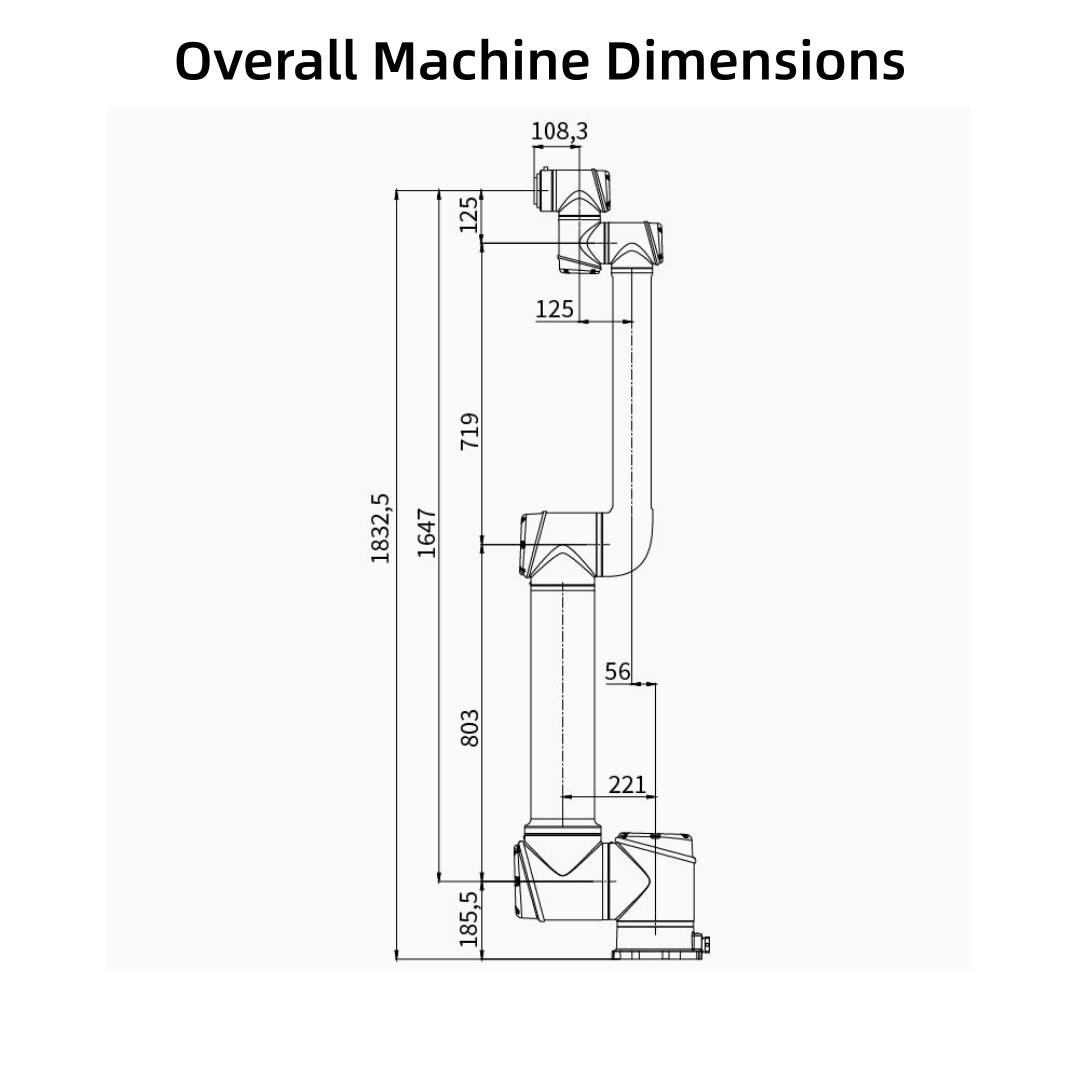

✓Payload 20 kg, arm span 2210.5 mm, maximum working radius 2000 mm.
✓High performance and fast response.
⛓
Payload20 kg
⚖
Weight72 kg
±
Repeatability±0.05 mm
◎
Working Radius2000 mm

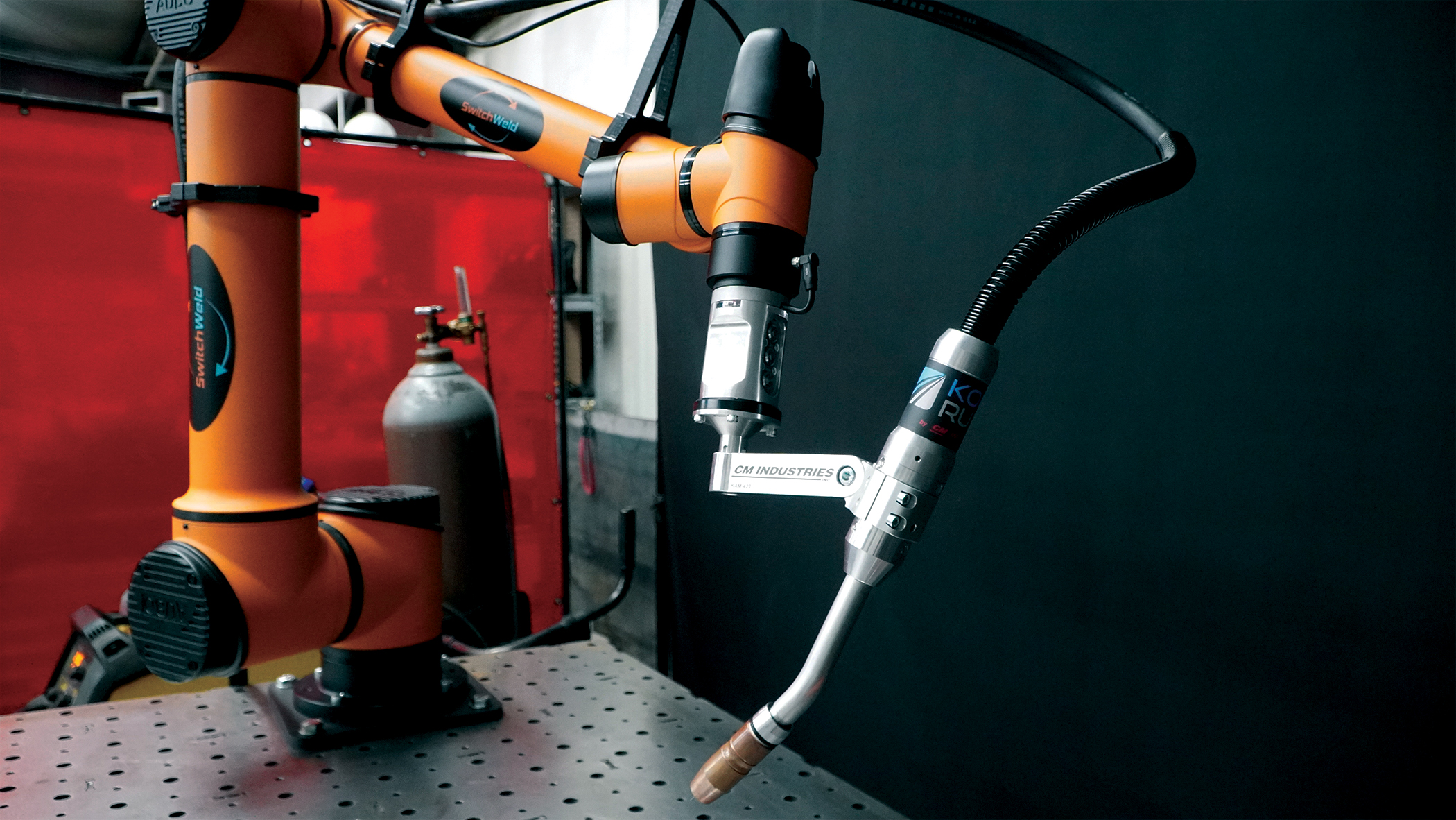

Automotive Welding Application
With 2210.5 mm arm span and 20 kg lifting capability, iS20L handles large welding fixtures and complex joint paths in automotive body-in-white production without repositioning.
With 2210.5 mm arm span and 20 kg lifting capability, iS20L handles large welding fixtures and complex joint paths in automotive body-in-white production without repositioning.

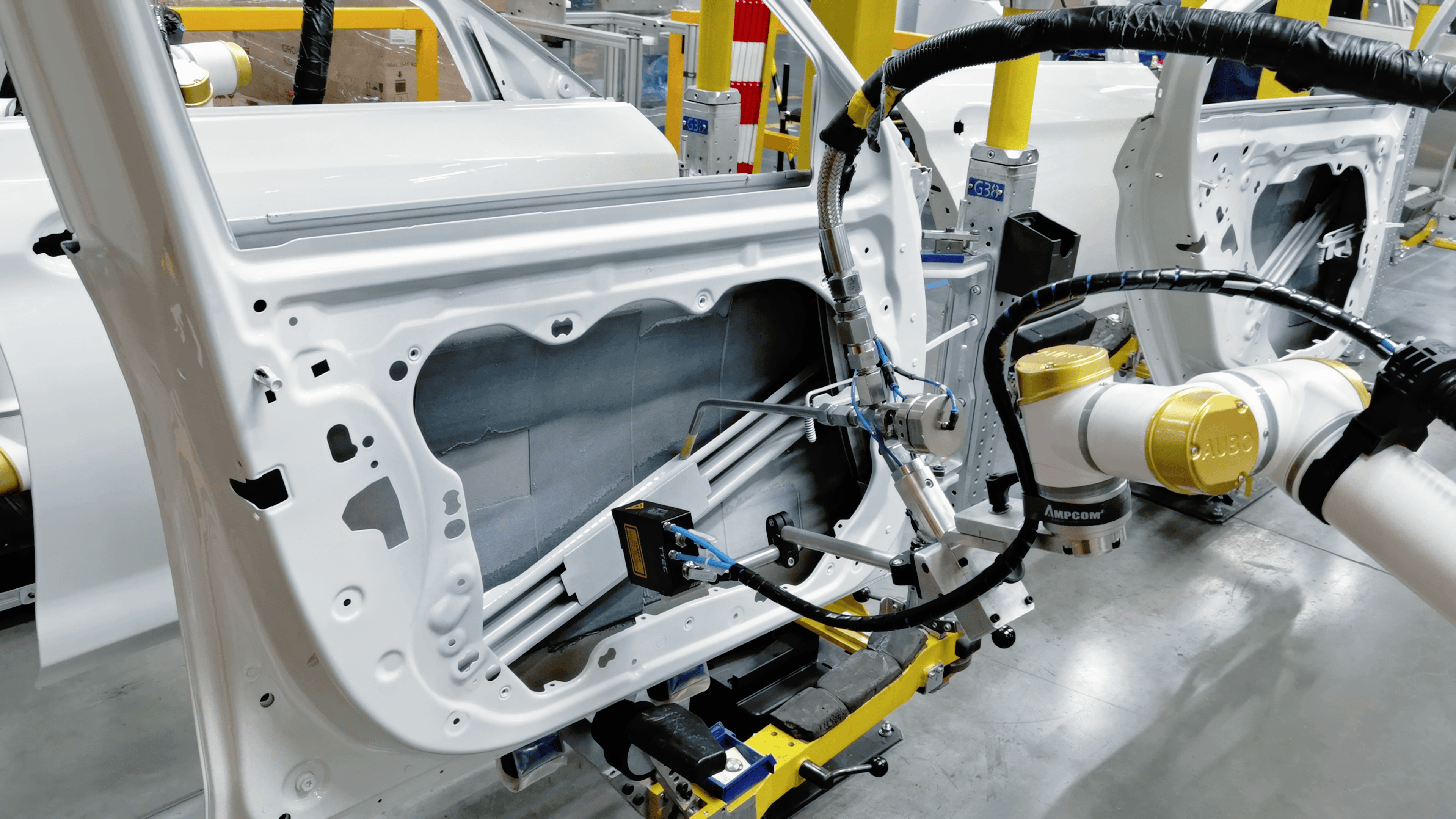

Automotive Window Bonding
The iS20L's extended 2000 mm reach enables precise adhesive dispensing along full vehicle window contours in a single station, eliminating repositioning time and boosting assembly throughput.
The iS20L's extended 2000 mm reach enables precise adhesive dispensing along full vehicle window contours in a single station, eliminating repositioning time and boosting assembly throughput.
