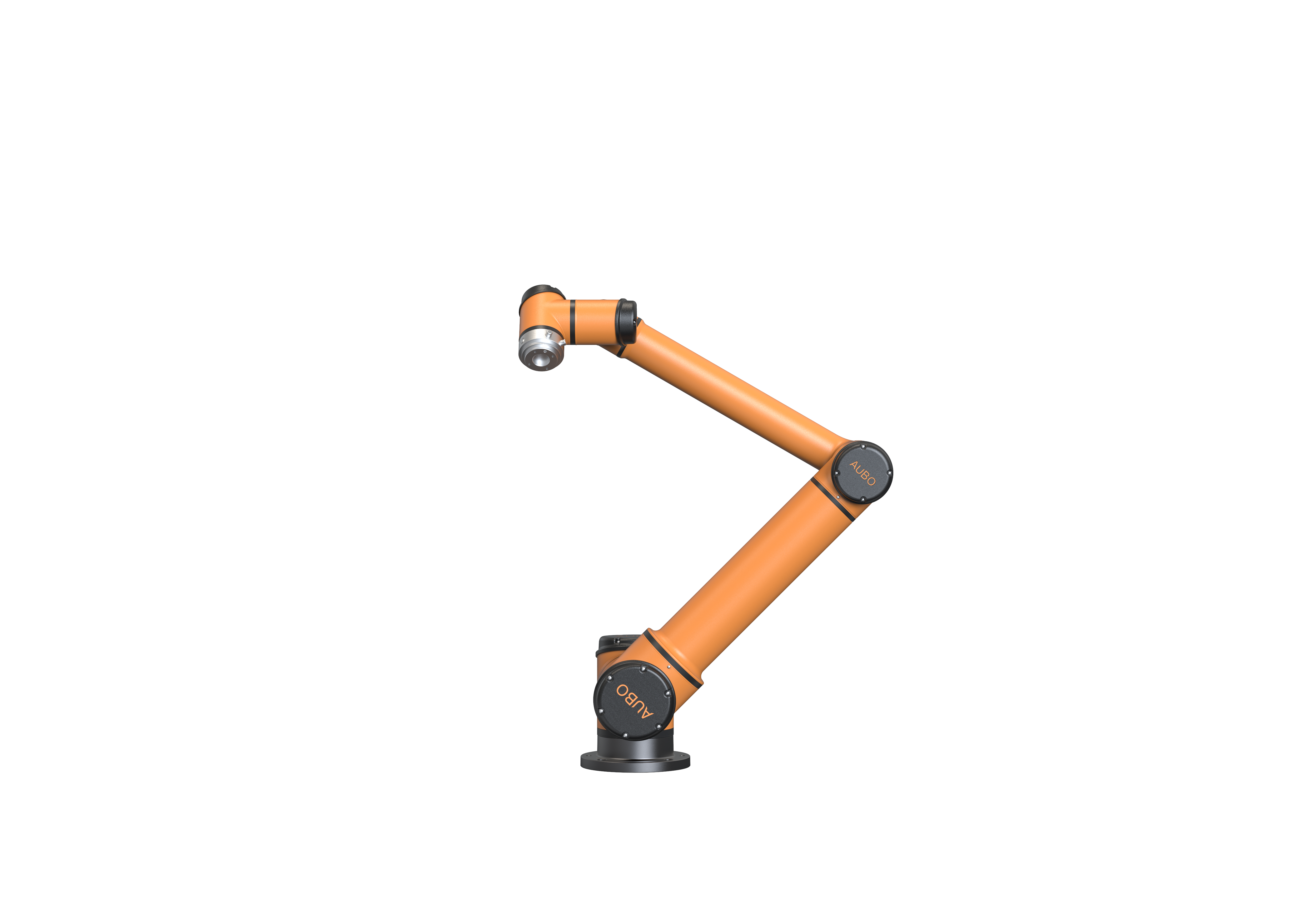

✓AUBO-iS10 high-performance collaborative robot, featuring fast arm movement to meet the operational demands of complex and sensitive environments.

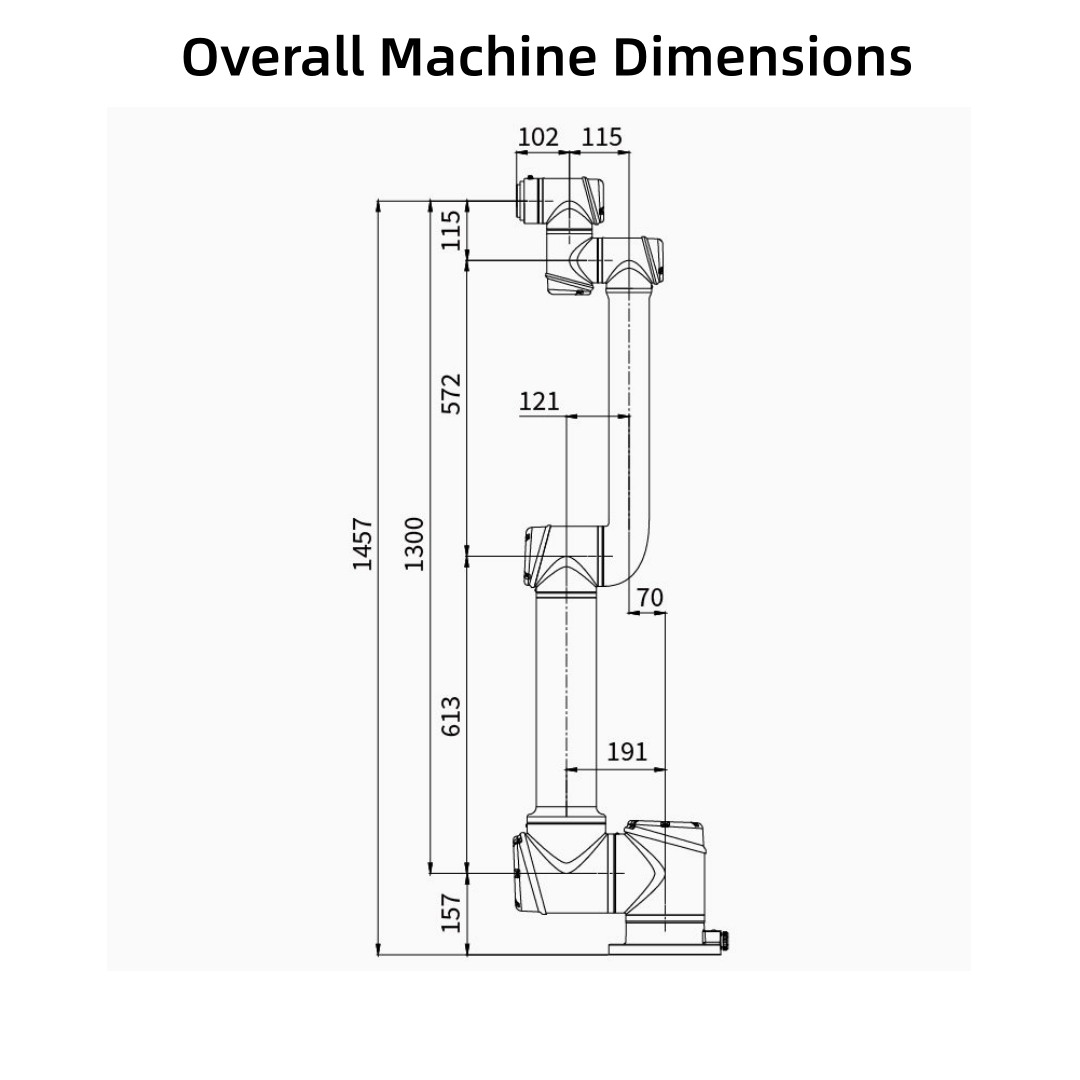

✓Payload 12 kg, arm span 1457 mm, maximum working radius 1300 mm.
✓High performance, fast response, compact and lightweight.
⛓
Payload12 kg
⚖
Weight36 kg
±
Repeatability±0.03 mm
◎
Working Radius1300 mm

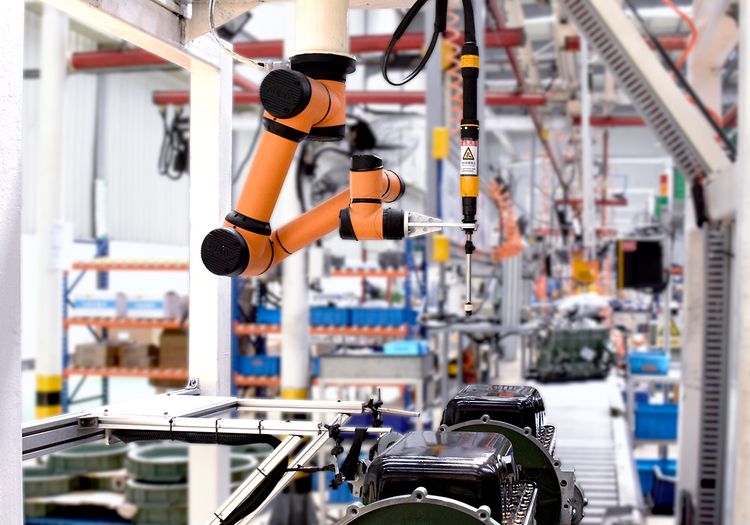

Engine Cover Screw Fastening
AUBO iS10 delivers 12 kg payload and ±0.03 mm repeatability for precise, consistent screw fastening across engine cover assembly lines.
AUBO iS10 delivers 12 kg payload and ±0.03 mm repeatability for precise, consistent screw fastening across engine cover assembly lines.

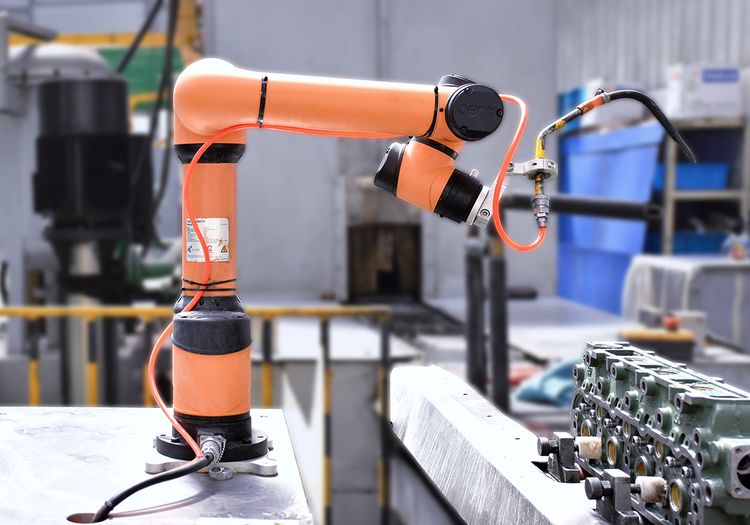

Cylinder Head Air Blowing
With a 1300 mm working radius, the iS10 covers full cylinder head surfaces without repositioning, ensuring stable and complete air blowing in every cycle.
With a 1300 mm working radius, the iS10 covers full cylinder head surfaces without repositioning, ensuring stable and complete air blowing in every cycle.
