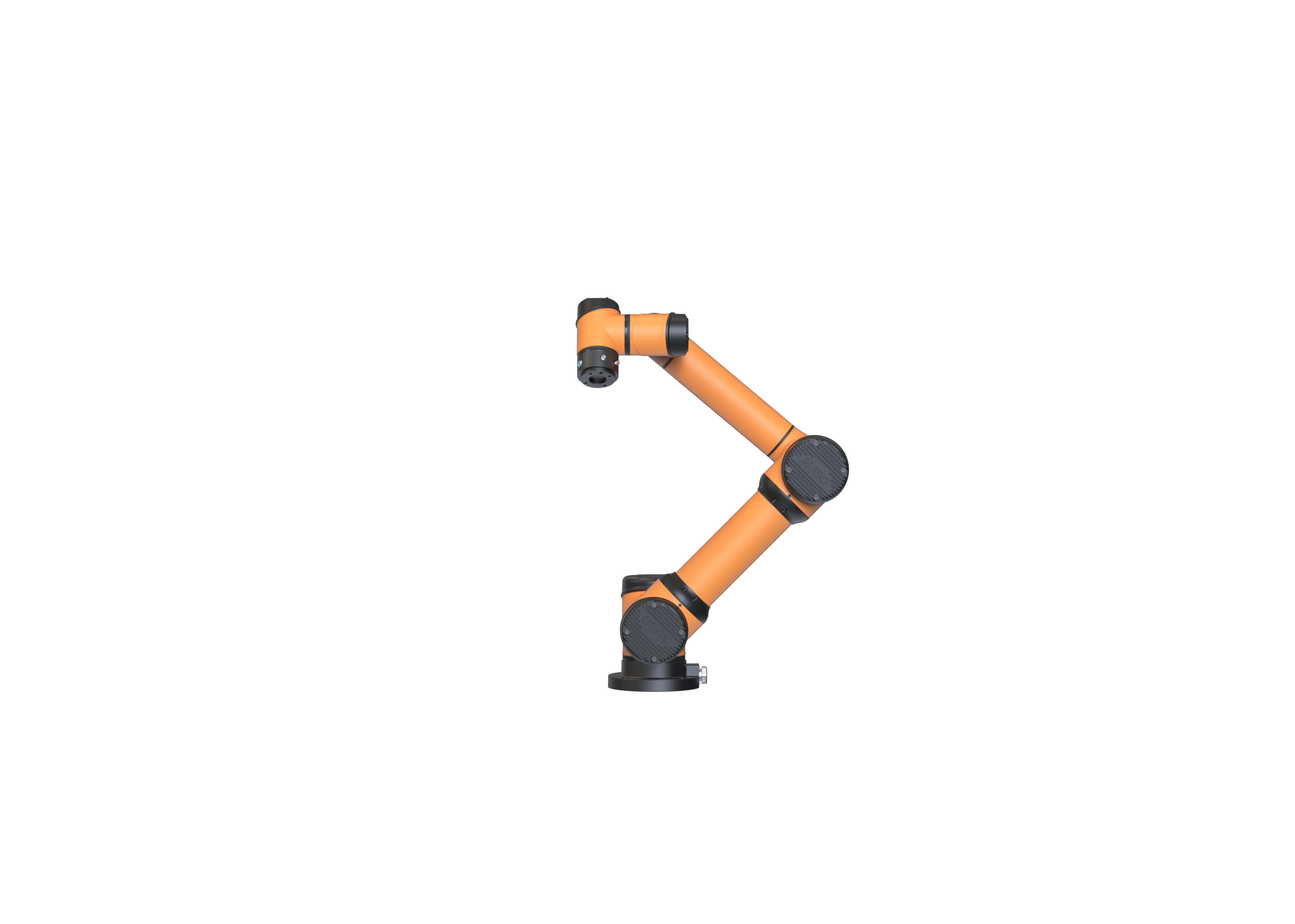

✓AUBO-i5 collaborative robot is designed to meet light-duty automation requirements.

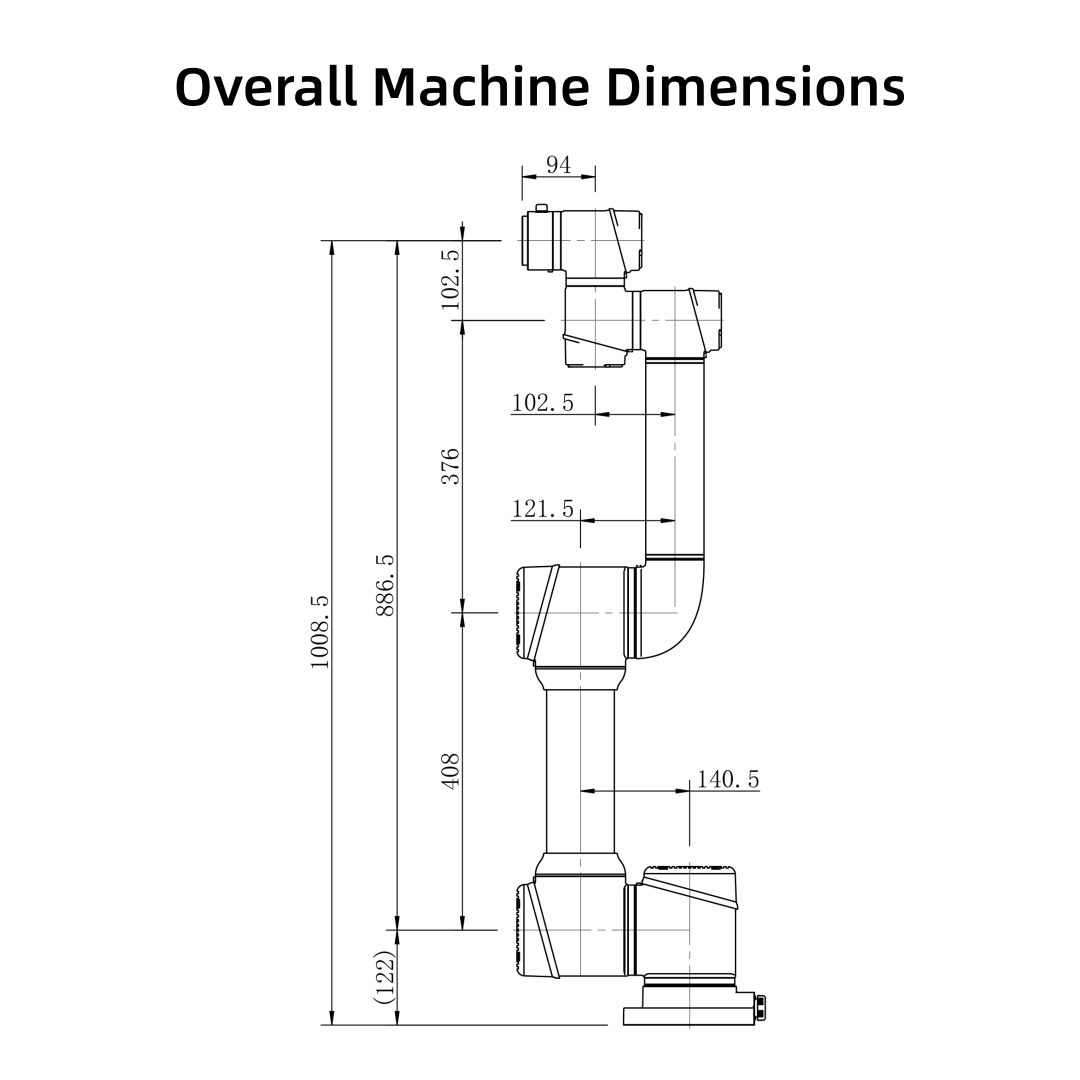

✓Payload 5 kg, arm span 1008 mm, maximum working radius 886.5 mm.
✓Wide application range, rich configuration, and all joints capable of ±360° rotation.
⛓
Payload
5 kg
⚖
Weight
23.3 kg
±
Repeatability
±0.02 mm
◎
Working Radius
886.5 mm

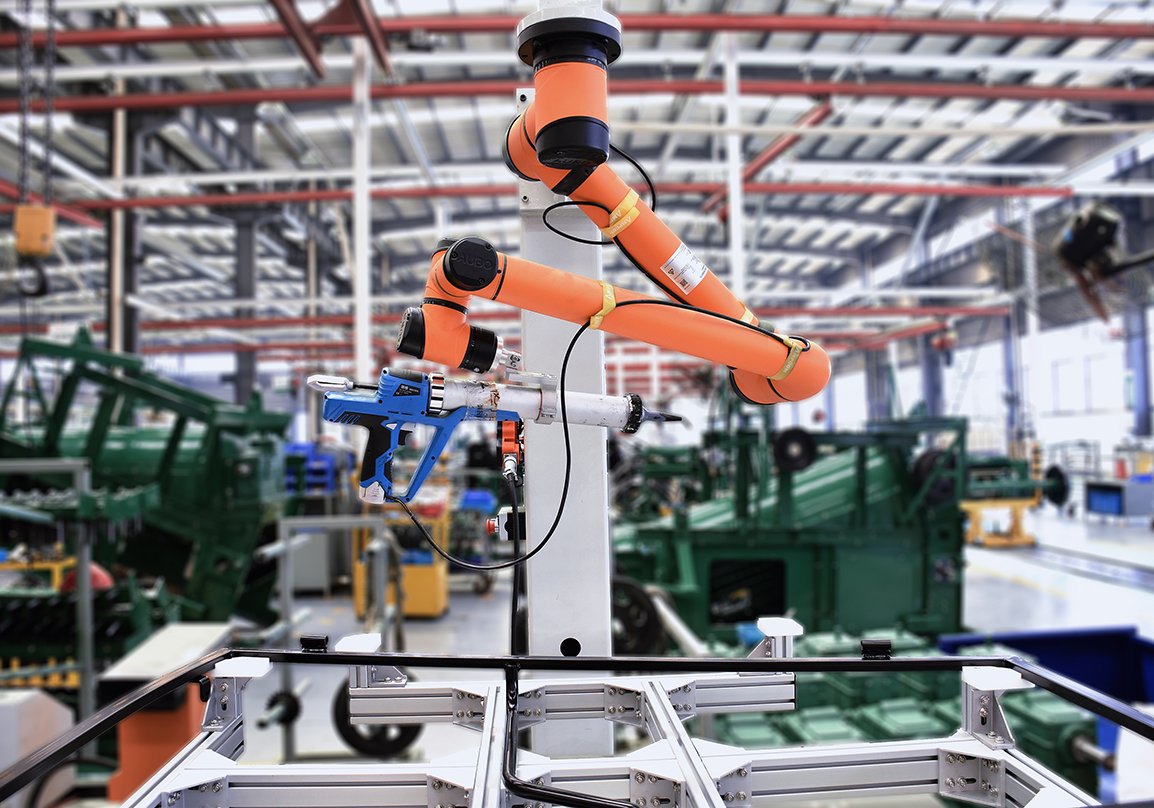

Automotive Window Gluing
With a 5 kg payload and ±0.02 mm repeatability, the i5 precisely traces complex windshield and side-window adhesive paths across an 886.5 mm reach, ensuring uniform bead application on every vehicle — even with mid-weight dispensing end-effectors.
With a 5 kg payload and ±0.02 mm repeatability, the i5 precisely traces complex windshield and side-window adhesive paths across an 886.5 mm reach, ensuring uniform bead application on every vehicle — even with mid-weight dispensing end-effectors.

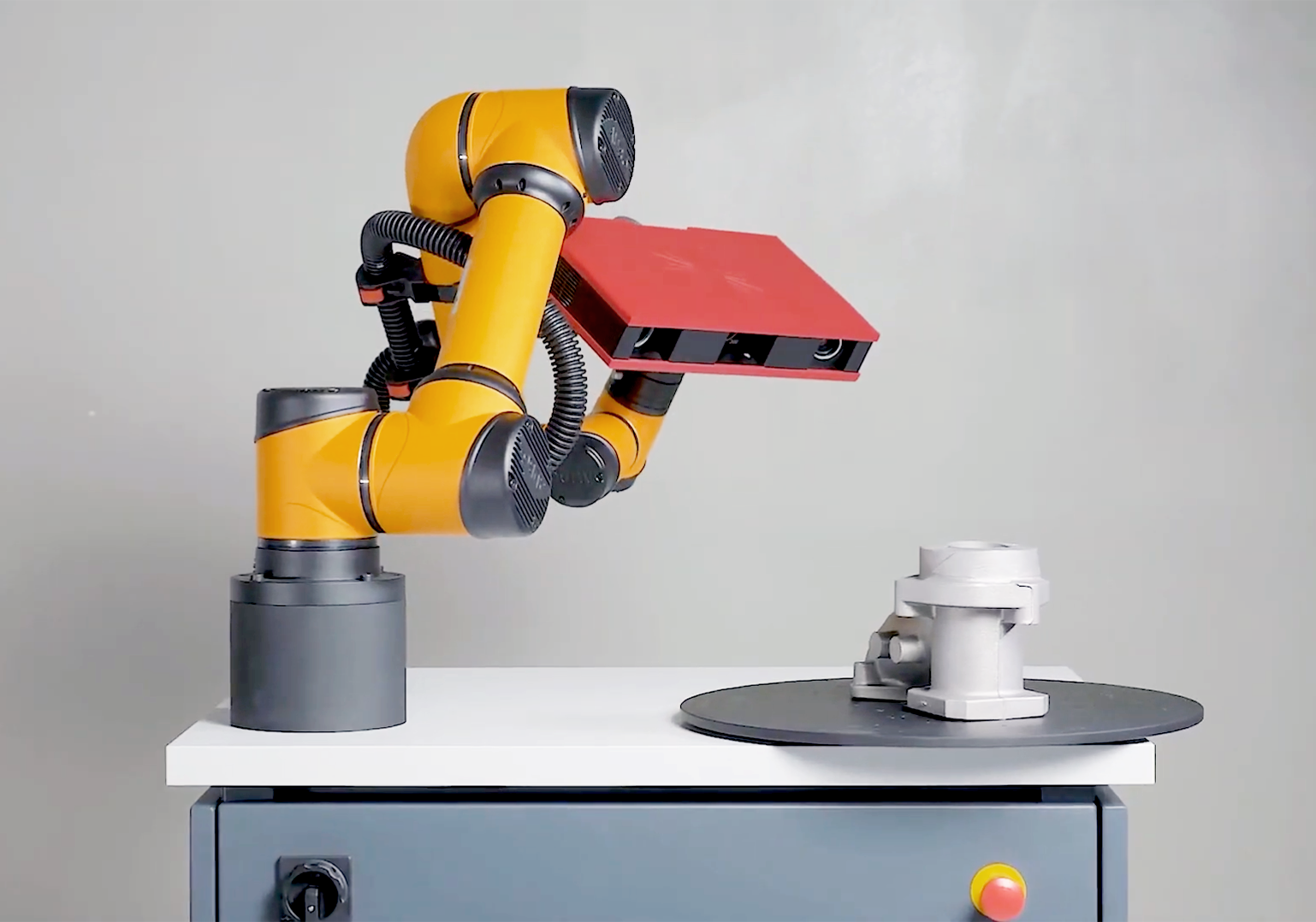

GOM 3D Inspection
Leveraging ±0.02 mm spatial repeatability and full ±360° joint rotation, the i5 positions GOM 3D sensors across an 886.5 mm working radius to capture complete surface data in a single setup, eliminating repositioning errors on complex part geometries.
Leveraging ±0.02 mm spatial repeatability and full ±360° joint rotation, the i5 positions GOM 3D sensors across an 886.5 mm working radius to capture complete surface data in a single setup, eliminating repositioning errors on complex part geometries.
